DDR5 Controller

Manages high-speed memory access with low latency control.

PRODUCT OVERVIEW

  • A DDR5 controller enables seamless, high-bandwidth communication between processors and DDR5 memory modules. It ensures efficient command handling, data alignment, and error correction while complying with JEDEC DDR5 standards.

  • DDR5 controllers are widely used in AI accelerators, networking ASICs, and high-performance SoCs where massive parallelism and memory throughput are critical.

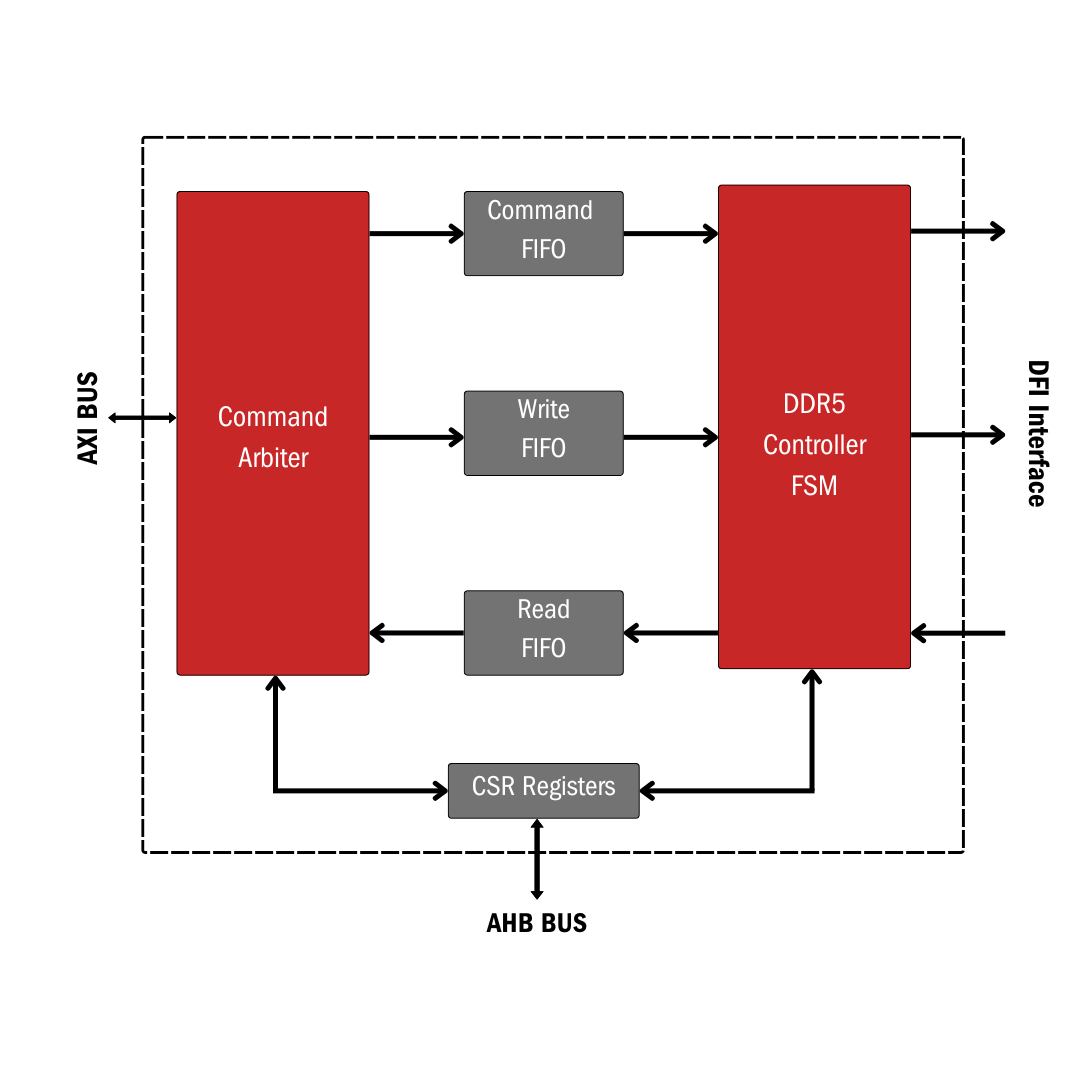

PRODUCT ARCHITECTURE

PCIe Gen 5 Architecture

FEATURES

Discover the Difference

JEDEC-Compliant Architecture

Full support for DDR5 protocol including CA parity and on-die ECC.

Multi-Port Access with QoS

AXI/AHB interfacing with arbitration and priority control.

Data Rates up to 6400 MT/s

Optimized for high-speed data-intensive applications.

Advanced Training and Calibration

Includes 1D/2D training FSMs for signal integrity.

Dual Independent 32-bit Channels

Maximizes parallelism and memory throughput.

Power Management Support

Fine-grained refresh, self-refresh, and power-down modes.

DFI 5.0 Compatible PHY Interface

Standardized PHY connection for interoperability.

Inline ECC and Scrubbing

Ensures data integrity with SECDED and optional scrubbing logic.
