MIPI

Integrates MAC IP to a broad range of PHY and SerDes IP

Overview

The main applications for MIPI can be divided into three types: Camera (CSI), Display (DSI), and Storage (UFS). Just like most of the technical interfaces, the MIPI Alliance has developed a standardised testing document to define and specify the testing conditions, methods, and items.

XtremeSilica MIPI IP solutions enable the interface between system-on-chips (SoCs), application processors, baseband processors and peripheral devices. Xtreme Silica’s broad portfolio of MIPI IP solutions consists of silicon-proven PHYs and controllers, verification IP, IP Prototyping Kits and Interface IP Subsystems.

XtremeSilica continues to support the ecosystem by developing high-quality, low-power, cost-effective, interoperable MIPI IP solutions that enable designers to deploy new features into their mobile, automotive and IoT devices. Utilising a single-vendor solution allows designers to lower the risk and cost of integrating MIPI interfaces into SoCs and device ICs, while speeding time-to-market

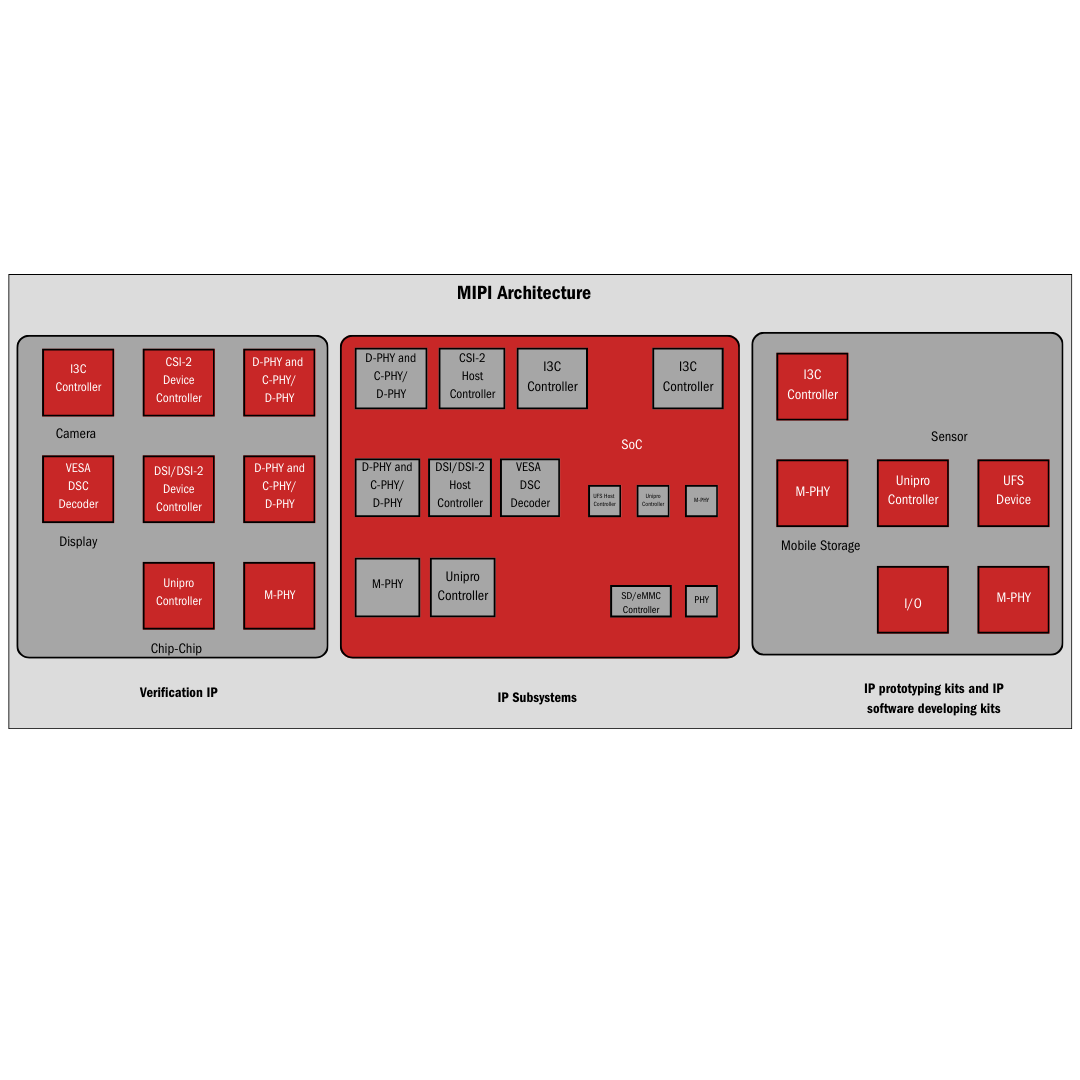

diagram

Features

  • 12.5 MHz SDR (Controller, Target and Legacy I2C Target Compatibility
  • Target can operate on I2C device on I2C bus and on I3C bus using HDR modes
  • Target Reset
  • Specified 1.2V-3.3V Operation for 50pf C load
  • In-Band Interrupt (w/MDB)
  • Dynamic Address Assignment
  • Error Detection and Recovery
  • Secondary Controller
  • Hot-Join Mechanism
  • Common Command Codes (CCCs)
  • Specified 1.0V Operation for 100pf C load
  • Set Static Address as Dynamic Address CCC (SETAASA)
  • Synchronous Timing Control
  • Asynchronous Timing Control (Mode 0)
  • Asynchronous Timing Control (Mode 1-3)
  • HDR-DDR
  • HDR-TSL/TSP
  • HDR-BT (Multi-Lane Bulk Transport)
  • Grouped Addressing
  • Device-to-Device(s) Tunnelling
  • Multi-Lane for Speed (Dual/Quad for SDR and HDR-DDR)
  • Monitoring Device Early Termination
